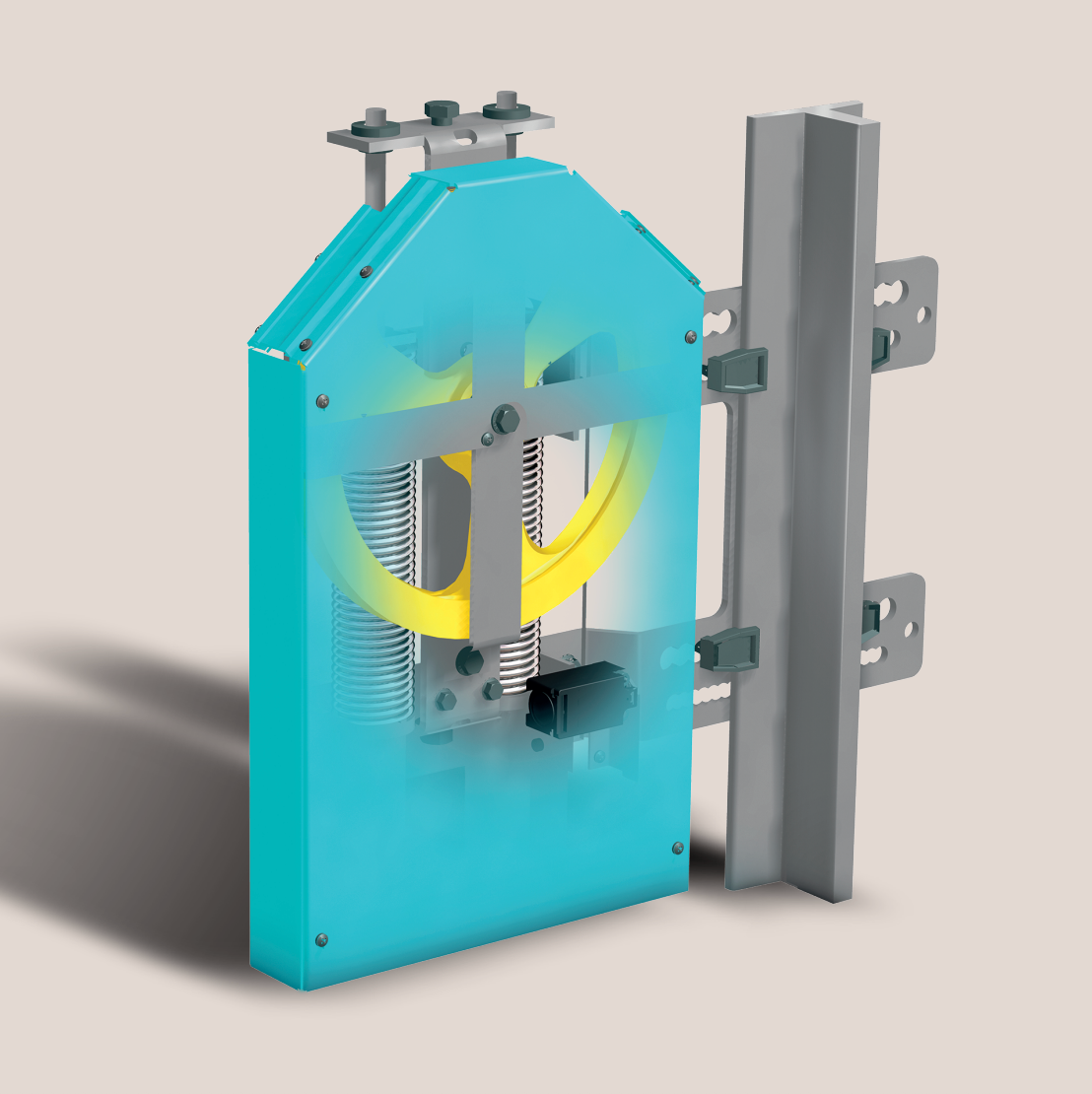

CTW | Compact Tension Weight
Engineered For Safe and Compact Tensioning
Spring loaded tension weight ideal for modernization & narrow pit dimensions SLG. Narrow design and less weight of device makes the CTW the perfect choice for tight space requirements in pits. CTW is suitable for uni- and bidirectional overspeed governors up to 3,5 m/s (Rope Ø 6-8 mm). It's main advantage is to be the perfect tension weight for tight situations.
Available tensions forces are 250 / 600 / 1250N, while a safety switch allows huge rope elongation. CTW is suitable for seismic elevators according to EN 81-77, compliant with requirements of EN 81-20:2014 and 100% checked at factory.
Key features
- Uni- & Bidirectional
- Fixing: guide rail / pit floor
- Fits to every overspeed governor (e.g. EOS)
- Compact design with small overall dimension
- High safety level when modernizing an elevator
- Very easy to install
